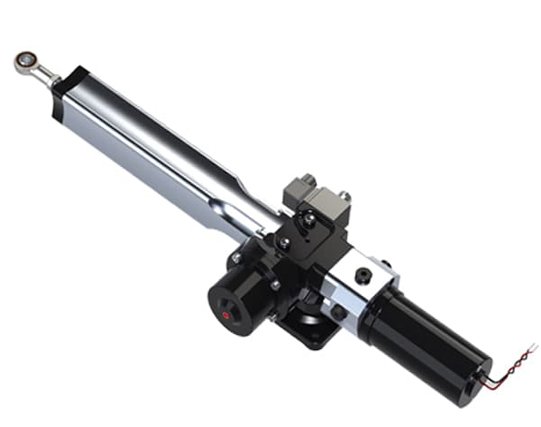

LINAK linear actuators are hi-tech electric devices able to convert rotational motion in low voltage DC motors into linear push/pull movement. Electric actuators are the perfect solution when you need simple, safe and clean movement with accurate and smooth motion control. LINAK linear actuators are ideal for all sorts of applications where tilting, lifting, pulling, or pushing with thrusts up to 15,000 N is required.

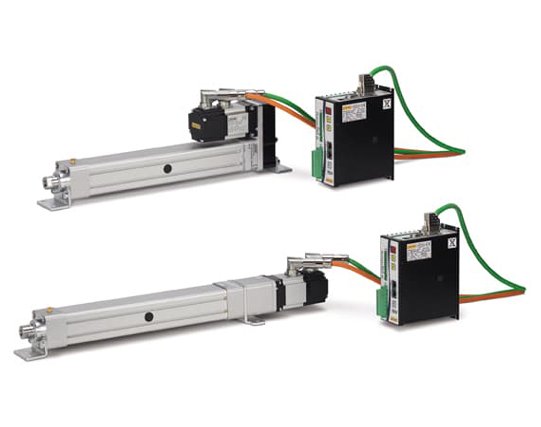

The IMA is an integrated linear servo actuator design in a compact, heavy duty package. Available in both ball and roller screw configurations, the IMA servo linear actuators provide forces up to 30.6 kN (6875 lbf) even in high duty cycle applications. The IMA utilizes a standard servo motor available with many feedback types. Available in food-grade coating for sanitary wash-down applications.
CHAMBRELAN slides have been designed to function with a minimum maintenance. Slides are lubricated in house with a grease for an optimum lifespan. In case of aggressive conditions of use (corrosive environment, intensive use...) we advise a regular and systematic maintenance of the slide.

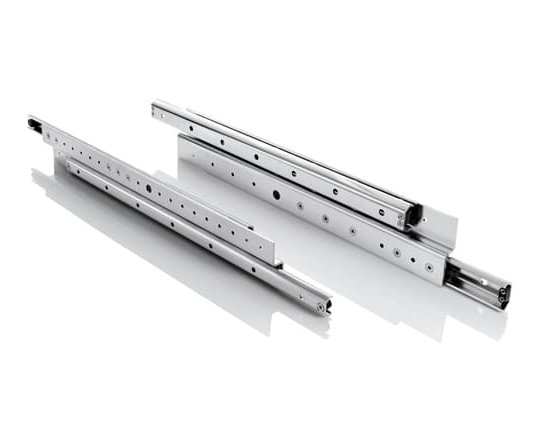

Download the catalogue Download leaflet Download CAD drawings Product description Technical features Data Request information High load capacity and reduced deflection telescopic rails with caged balls bearings. The telescopic guides have optimal running properties due to inductively hardened raceways. TELESCOPIC RAIL linear slides exhibit little deflection while under very heavy loads, even when fully extended. The Telescopic Rail product family includes full or partial extraction telescopic rails, and consists of eight (8) different sizes. The deflection resistant central components are available in the S, double T or square versions. All series components offer a high load capacity, a minimum deflection and a sliding travel with no play, even under maximum load and when the rails are fully extended. The fixing holes are positioned at a standard pitch.

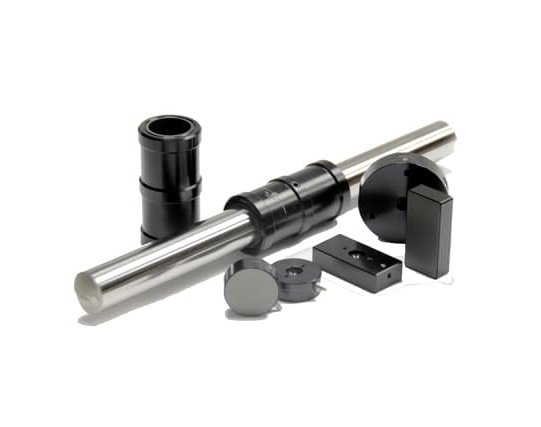

QBC offers many linear motion components which can be purchased online. Our frelon® lined bearings can carry 4 to 8 times the load of ball bearings. New line of stainless steel precision shafting features 1/64" x 45° chamfer at both ends. Guide blocks made of AISI 1055 steel, concentric and eccentric type guide wheels as well as new needle bearing cam followers are available for purchase in this section. Linear Bearings Linear motion is the most basic of all motion. Linear ball bearings provide linear movement in one direction.

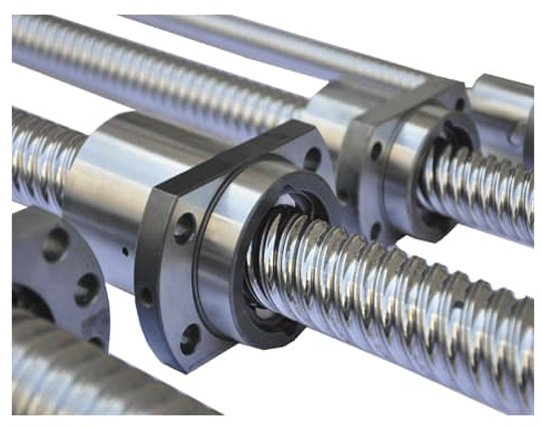

Thanks to decades of experience with manufacturing ball and roller screws and their continuous product and process development activities, provides customers with precision screw solutions that fulfil the most demanding applications in terms of efficiency, precision, durability and value. provides solutions for applications that require driving technology. Ball screws and roller screws convert rotary motion into linear motion, and vice-versa.
The Ball Spline is a rolling guide spline bearing. This is an innovative product with a ball rolling on a groove connected to the shaft, realizing allowable loads greater than with linear bushing and enabling torque transmission while making linear movements.
Confusion exists regarding dampers, gas struts, gas springs, gas shocks, and many other words used on somewhat inter-changed basis. These terms in fact do distinguish different products. The fact that these products often look similar externally lends to the confusion. Some basic parameters that apply to all of these products.
